Description
Product Details:
| Brand | Crystal |
| Model Number/Name | AA-1683 |
| Usage/Application | Industrial |
| Series | AA-168 |
| Size | 100 X 100 X 35 mm (WxHxT) |
| Range | 10 to 110 mm |

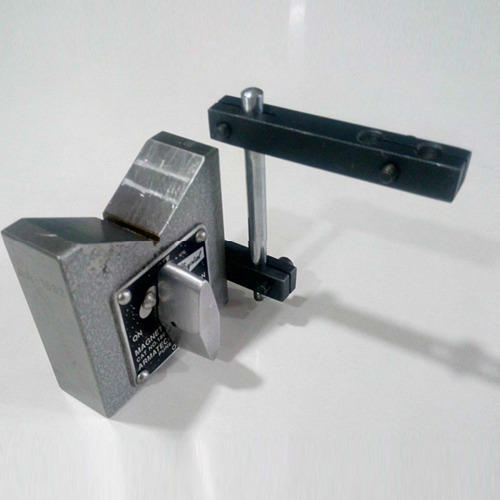

This Tool Setting gauge is used to set boring tools to the exact bore diameter on boring machines & machine tools with rotating boring tools. Due to the magnetic base, it can be hold directly on boring spindle. The clamps can fit at various position where by any one bore size can be set on the device. The device has ON-OFF switch for holding the body on boring spindle. The ‘V’ slot of the device is ground to 5 microns accuracy.
Details:
| Sr. No. | Cat No. | Dimensions L X H X T |
Range In mm |
| 1. | AA-1681 | 60 X 60 X 30 | 10 to 50 |
| 2. | AA-1682 | 80 X 80 X 30 | 10 to 90 |
