Description
Features

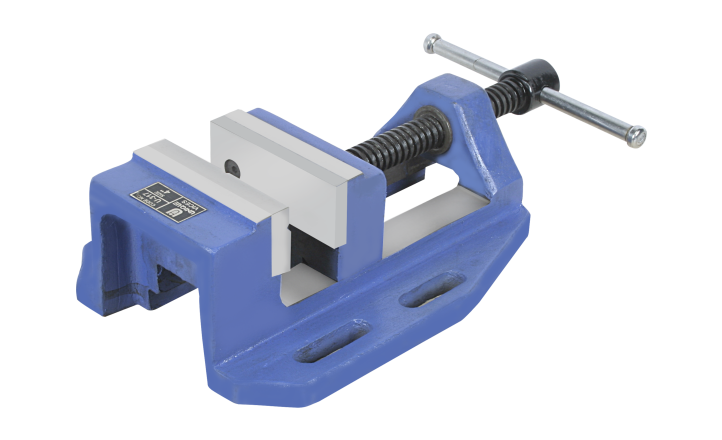

- Drill Press Vices body made of close grain cast lron.
- Special steel ground jaws provided with “V” groove for holding round jobs.
- Lead screw of special steel is provided.
- Four “T” slots are provided on the both sides for rigid grip on drilling machine.
| SIZE IN INCHES |
3 |
4 |
6 |
| Width of jaws in mm |
80 |
100 |
150 |
| Depth of jaws in mm |
45 |
60 |
60 |
| Opening of jaws in mm |
75 |
115 |
155 |
| Height overall in mm |
70 |
85 |
100 |
| Length overall in mm |
230 |
275 |
155 |
| Width overall in mm |
145 |
185 |
245 |
| Slot size in mm |
10 |
13 |
13 |
| Weight (Approx) in kgs. |
4.5 |
8 |
15.5 |
