Description
Features

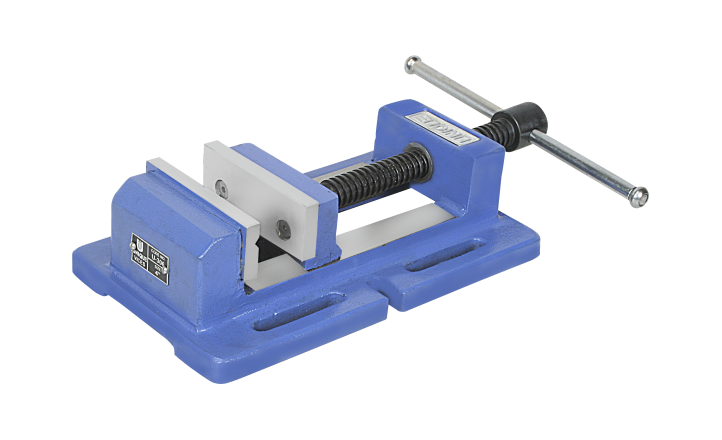

- Drill Vice Heavy , body close grain cast lron.
- Special steel ground jaws provided with “V” grove for holding round jobs.
- Lead screw of special steel.
- Large base for rigid mounting on table is provided with “T” slots for griping on the drilling machine table.
ALSO AVAILABLE IN DUCTILE IRON (UNBREAKABLE BODY)
Specifications
| SIZE IN INCHES | 3 | 4 | 5 | 6 | 8 | 12 |
|---|---|---|---|---|---|---|
| Width of jaws in mm | 75 | 100 | 125 | 150 | 200 | 310 |
| Depth of jaws in mm | 40 | 45 | 50 | 50 | 60 | 90 |
| Opening of jaws in mm | 100 | 130 | 135 | 170 | 200 | 340 |
| Height overall in mm | 70 | 75 | 90 | 90 | 100 | 155 |
| Length overall in mm | 250 | 300 | 315 | 380 | 430 | 670 |
| Width overall in mm | 130 | 160 | 190 | 230 | 270 | 395 |
| Slot size in mm | 10 | 10 | 13 | 13 | 13 | 20 |
| Weight (Approx) in kgs. | 5 | 7.5 | 9.000 | 15.000 | 23.000 | 76 |
