Description
DURA Multi stage regulator gives a constant delivery flow over a range of decreasing inlet pressures. This precise two stage regulation provides superior operating characteristics for applications where change in delivery pressure would affect performance characteristics of work or test results.
Features
- Die-Forged Brass Body provides grater strength and durability
- Robust Die-Cast Zinc Alloy Bonnet provides extra strength
- Valve Seat Neoprene bonded gives proper sealing
- Stainless Steel Diaphragm(1st stage) gives accurate long lasting and high strength service in DURA platform
- High precision safety valve to protect the user(excluding Acetylene)
Specifications
DURA HYDROGEN H-10
| Gas Service | HYDROGEN |
| Maximum Flow | 1000 l/min |
| Maximum Delivery Pressure | 10 bar |
| Maximum Inlet Pressure | 230 bar |
DURA NITROGEN
| Gas Service | NITROGEN |
| Maximum Flow | 1000 l/min |
| Maximum Delivery Pressure | 10 bar |
| Maximum Inlet Pressure | 230 bar |
DURA ACETYLENE A-1.5
| Gas Service | ACETYLENE |
| Maximum Flow | 250 l/min |
| Maximum Delivery Pressure | <1.5 bar |
| Maximum Inlet Pressure | 25 bar |

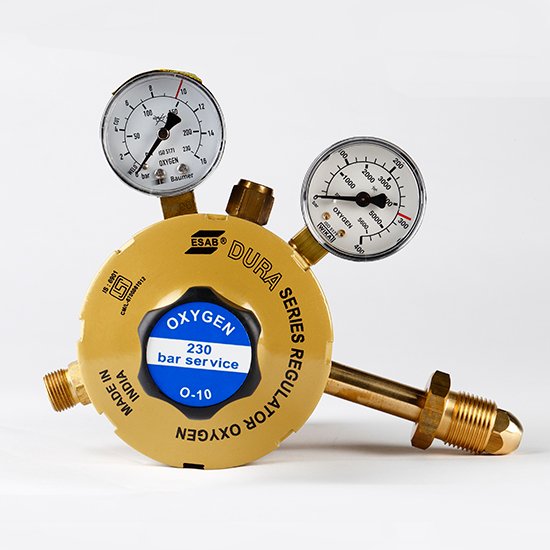

DURA OXYGEN 0-10
| Gas Service | OXYGEN |
| Maximum Flow | 1000 l/min |
| Maximum Delivery Pressure | 10 bar |
| Maximum Inlet Pressure | 230 bar |
