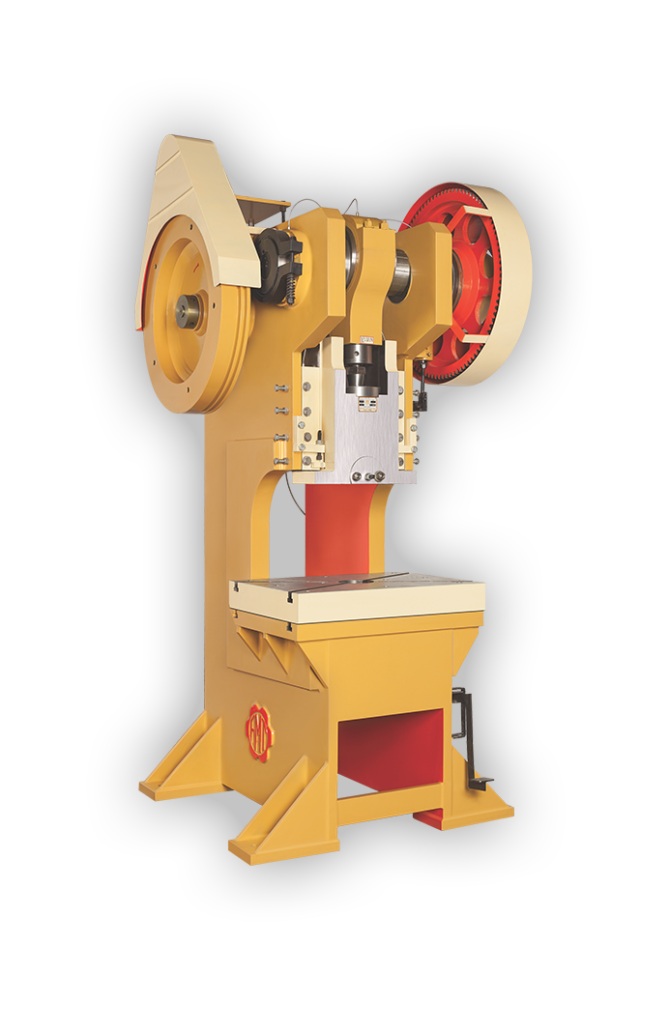

FMT ® Brand Heavy Duty mechanical Power Presses are coming in “C” frame versions from 5 tons to 200 tons capacity in most economical type of construction with several std./optional features such as manual/auto lubrication systems, knockouts electronics safety, Single/Double or Un-geared versions as also Pneumatic feeders/straightness & die-coilers for automatic Purpose.
FRAME:
The frame is made-up of the solid steel plate with heavy cross ribbing. The structure is being designed for the perfectly distribution of the balance over the cross section. Proper alignment of the frame is ensured by matching.
CLUTH:
The clutch is made of the steel alloy, the pin/ rolling key is manufactured from the W.P.S. /EN24 material and the parts are being tempered. It is rigid and well supported. It gives the continuous production.
CRANK SHAFT:
Crank Shaft is made up of steel alloy, machine with closed accuracy and fitted in the bushes for smooth working, longer life and accuracy.
ADJUSTABLE STROKE:
The sole feature of the adjustable stroke is that is performed all kind of operations by employing short stroke for blanking for blanking and forming operations.
FLYWHEEL:
Flywheel is made of high grade cast iron .It is use for storing and releasing energy for the pressing operation and balance for smooth running.
GEARS:
The Gears are made from steel cast. Gear teeth are generated by precision hobbing machine.
RAM SLIDE:
RAM SLIDE is made by Seasoning High Grade Casting and Bearing Surfaces Are Hand Scraped.
BED:
Bed is made up by high grade heavy duty cast iron, properly seasoned, properly aligned with RAM to achieve high accuracy and precision press operation.
LUBRICATION:
Lubrication has been provided for the lubricating the sliding surface and for moving parts. It is applied by the hand pump.Lubrication system has been provided above 20 Ton for lubricating the sliding surfaces and moving parts.
