Description
Features

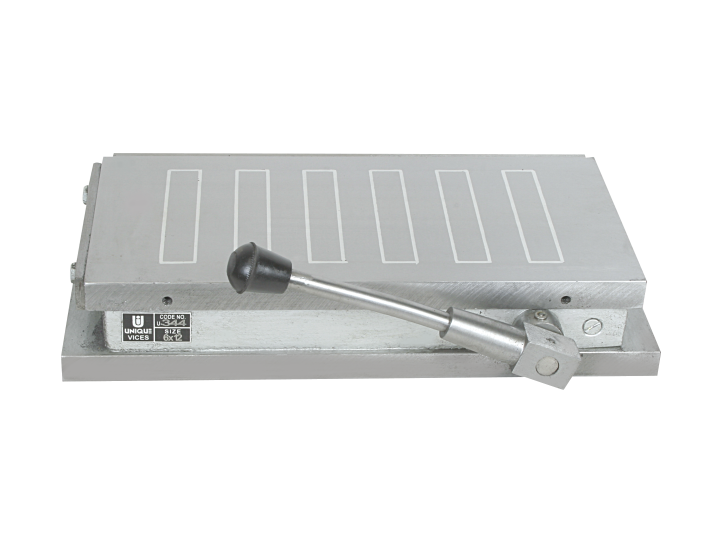

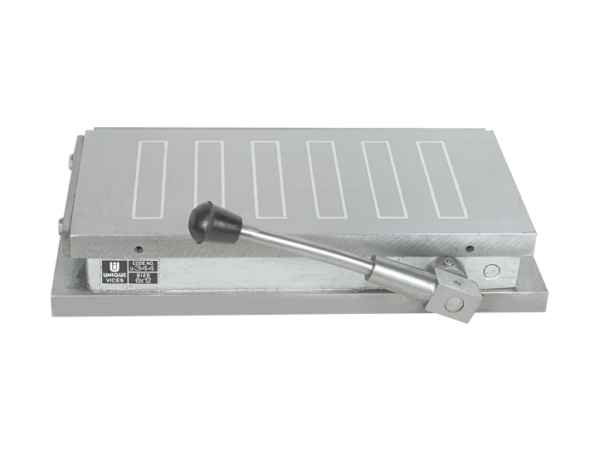

- Permanent Magnetic Chucks having top and base of solid mild steel with powerful permanent magnets.
- Pole space available is standard or close giving greater magnetic efficiency with medium & thick parts for grinding & machining operations.
- Chuck cannot loose magnetism except by dismantling.
- Cam operated ON/OFF handle to hold & release the work piece.
| U345 – No:- of poles (Close) | 6 | 7 | 7 | 7 | 9 | 10 | 12 |
| SIZE IN INCHES | 6×24 | 8×12 | 8×14 | 8×18 | 8×24 | 10×24 | 12×24 |
|---|---|---|---|---|---|---|---|
| Size in mm | 150×600 | 200×300 | 200×350 | 200×450 | 200×600 | 250×600 | 300×600 |
| U344 – No:- of poles (Standard) | 12 | 6 | 8 | 10 | 12 | 12 | 12 |
| SIZE IN INCHES | 4×8 | 4×12 | 5×10 | 6×10 | 6×12 | 6×14 | 6×18 |
|---|---|---|---|---|---|---|---|
| Size in mm | 100×200 | 100×300 | 125×250 | 150×250 | 150×300 | 150×350 | 150×450 |
| U344 – No:- of poles (Standard) | 5 | 6 | 5 | 5 | 6 | 8 | 10 |
