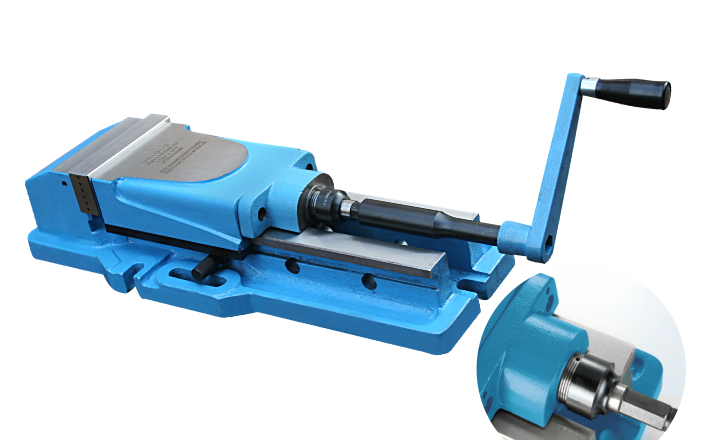

Description
Features
- Rigid Material Vise Body of Ductile Iron for milling, drilling, shaping, grinding and many other shop applications.
- New Design: Lock Proof System : Prevent wrong clamping stucks the Vice.
- Clamping Force : 4000-4500 KGF.
- Sliding Bed ways hardened and ground.
- Concealed spindle for protection against chips and dirt.
- Hydraulic- Booster system for maximum clamping pressure with minimum force,
- Quick of clamping & locking and easy of operation.
- Accuracy in Squareness within 0.02/100 MM
- Furnished with or without swivel base.
Specifications
| SIZE IN INCHES | 4 | 6 | 6 | |
|---|---|---|---|---|
| Opening | 100mm | 300mm | 200mm | |
| A | Width of jaws in mm | 105 | 150 | 150 |
| B | Opening of jaws in mm | 175 | 300 | 200 |
| C | Depth of jaws in mm | 36 | 58 | 58 |
| D | Length overall in mm | 440 | 620 | 510 |
| E | Height overall U 3510 | 95 | 145 | 145 |
| F | Width Overall U 3510 | 170 | 230 | 230 |
| G | Tenon slot Size in mm | 20 | 20 | 20 |
| Height overall U 3510 S | 125 | 185 | 185 | |
| Width Overall U 3510 S | 200 | 300 | 300 | |
| Weight (Approx) in kgs U 3510 | 19 | 53 | 48 | |
| Weight (Approx) in kgs U 3510 S | 22 | 65 | 60 |
