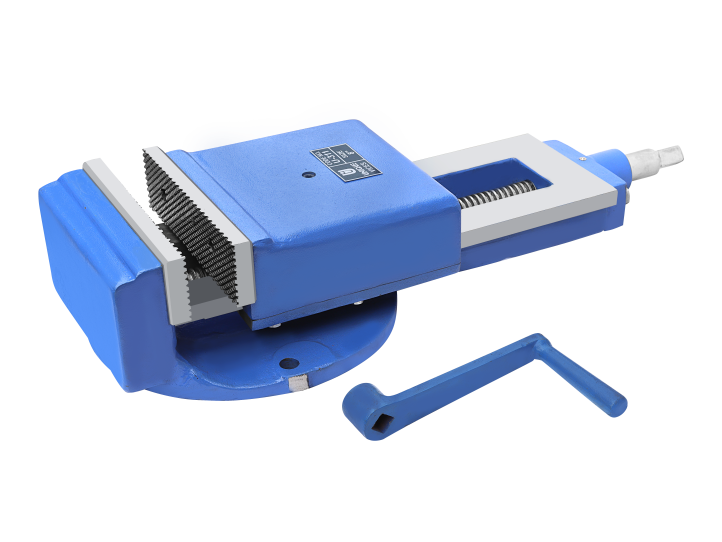

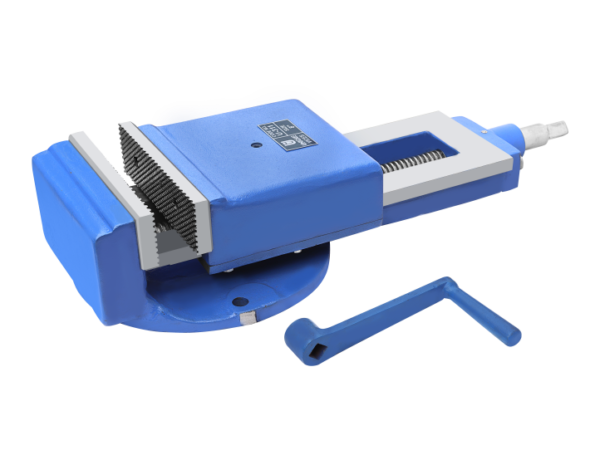

Heavy duty shaper vice sturdy constructed from close grain casting for use on shaper machines, planners & other heavy duty machines permitting wider application for taller work pieces.
It is designed to permit maximum opening jaws to hold heavy & taller jobs.
High tensile steel square thread screw.
The jaws are made of special steels. These are precisely ground & serrated to ensure firm grips on heavy jobs.
Swivel base is indexed to 360º, when required to use as stationery vice, the base can be removed.
Crank Handle is made of unbreakable steel, provided with a spring loaded mechanism providing positive grip
Specifications
Sizes in Inches
6
8
10
12
16
A
Width of jaws in mm
150
200
250
300
400
B
Opening of jaws in mm
200
250
300
360
400
C
Depth of jaws in mm
50
60
75
75
75
E
Length overall in mm
475
635
710
800
850
G
Width overall in mm
200
280
320
360
460
I
Height overall in mm
120
130
160
165
190
Weight (Approx) in kgs.
25
47
79
102
145
