Description
Specifications

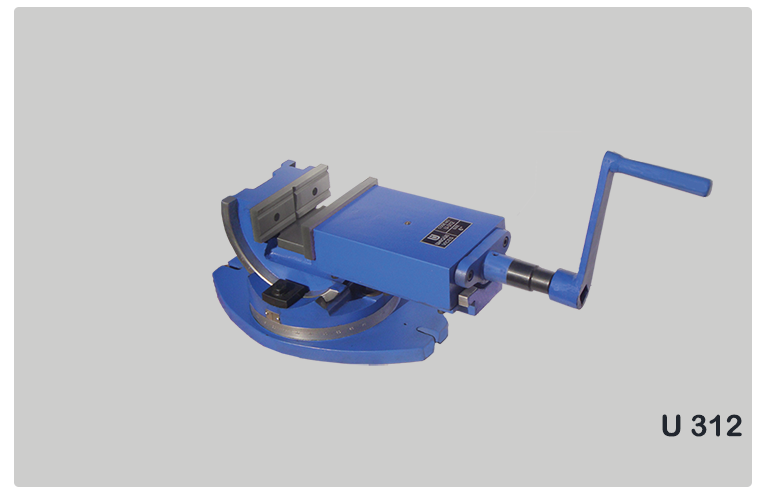

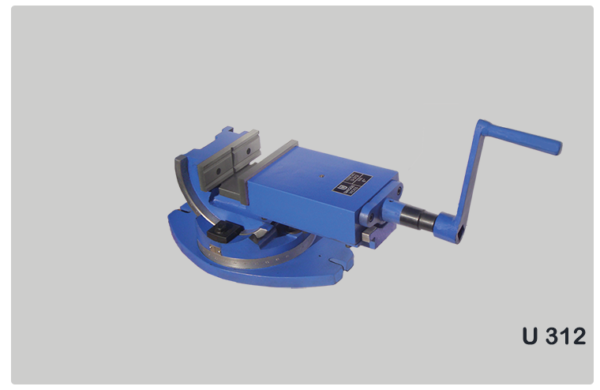

MODEL NO : U312
width of jaw : 150mm
depth of jaw : 50mm
opening of jaw : 180mm
overall length : 540mm
weight approx : 44kg
Features
- Positive locking to withstand heavy loads.
- Horizontal Swivel movement 360º.
- Vertical swivel movement 90º.
- Fine acme thread screw made out of special steel.
- Quick alignment to machine tables using a longitudinal slot.
- One vertical Two horizontal ‘V’ grooves are provided in hardened and ground jaws.
- Crank Handle is made of unbreakable steel provided with a spring loaded mechanism.
